Acceleration Reset

If an override motion command is executed while the axis is accelerating or decelerating, the acceleration will be reset to 0 for most profile types.

The following plots show the position, velocity, and acceleration when the override is executed while the axis is accelerating. The profile type is SCurve.

../_images/WMXDOC_FUNC_OVRD_image2.png

Acceleration for TrapezoidalMAT Profile

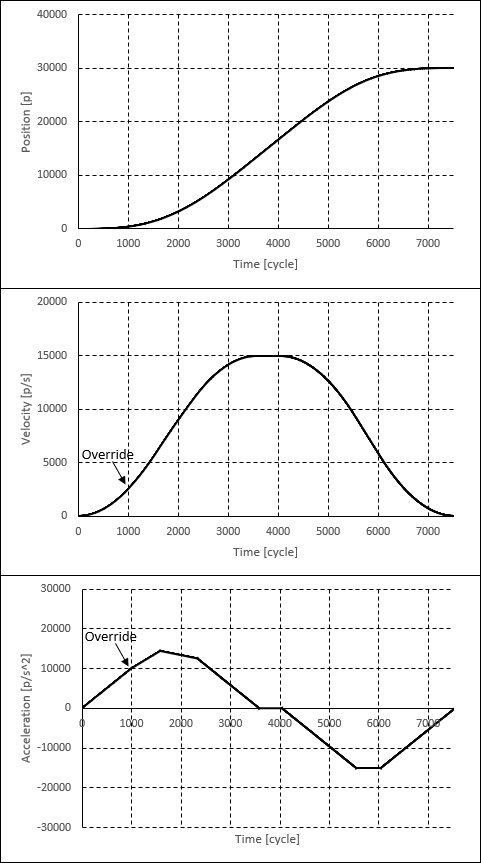

The TrapezoidalMAT profile type preserves the acceleration when an override is executed. The following plots show the position, velocity, and acceleration when an override is executed with the TrapezoidalMAT profile type. The moving average time is set to 1 second.

../_images/WMXDOC_FUNC_OVRD_image3.png

The TrapezoidalMAT profile type should be used if an override may occur while the axis is accelerating or decelerating, and a large jerk is undesirable.
