Minimum Velocity

If the Enable Global Min Velocity parameter is set to TRUE, the Global Min Velocity parameter determines the minimum velocity that may be commanded during a motion profile. If the starting velocity or end velocity is smaller than the minimum velocity, it will be increased to be at least equal to the minimum velocity.

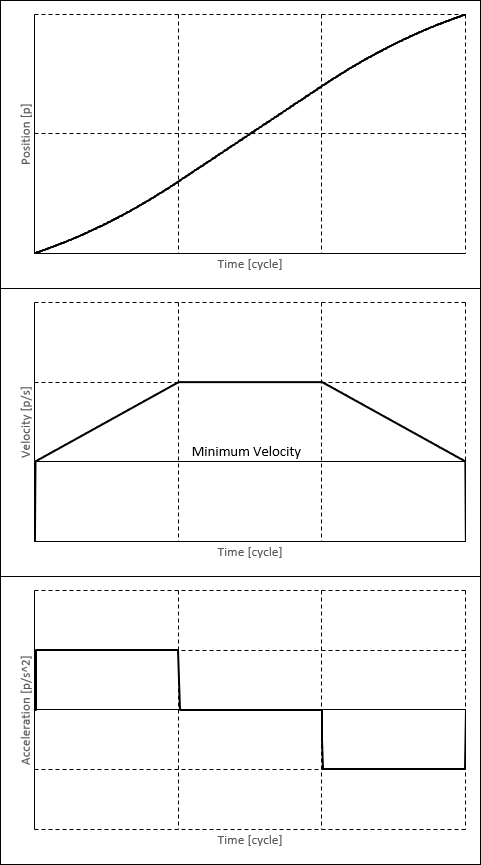

The following plots show the position, velocity, and acceleration when the minimum velocity is less than the profile velocity.

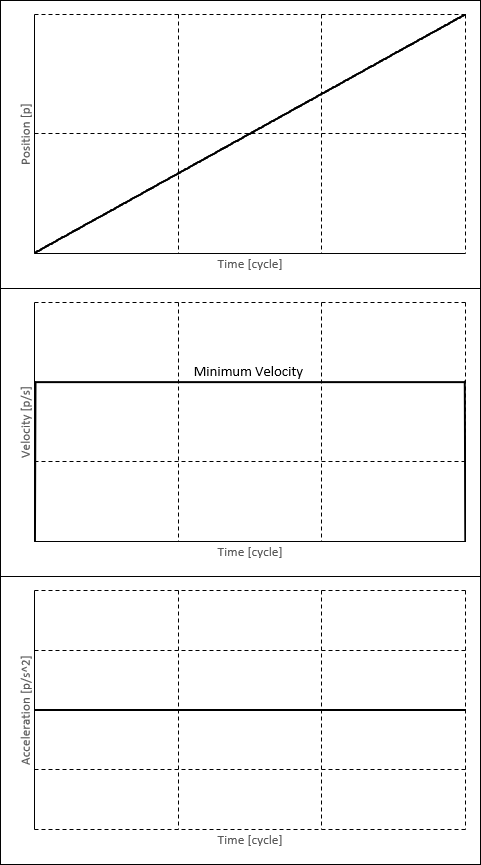

The following plots show the position, velocity, and acceleration when the minimum velocity is greater than the profile velocity.
