Output Bitmask Functions

Output functions containing “BitMask” are Output bitmask functions, which enable or disable operation on specific output bits.

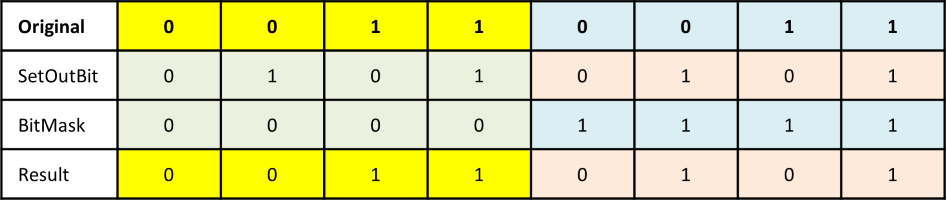

The following figure shows the result(Result) of bit mask setting(BitMask) and IOApi operation(SetOutBit) for a specific output address value(Original).

The following functions are used to enable or disable the output bitmask function.

• SetOutBitMaskBitMode

• GetOutBitMaskBitMode

The following functions are used to set value of output bitmask.

• SetOutBitMaskBit

• SetOutBitMaskByte

• SetOutBitMaskBytes

• SetOutBitMaskBits

The following functions are used to get the current value of output bitmask.

• GetOutBitMaskBit

• GetOutBitMaskByte

• GetOutBitMaskBytes
