TouchProbe

When the home type is TouchProbe, the axis will search for the touch probe in the homing direction, and sets the latched touch probe position as the home position.

The touch probe position is latched by the servo drive, and is typically more precise than home positions obtained by home switch or limit switch homing.

State Diagram

The following state diagram shows the Home States of this homing procedure.

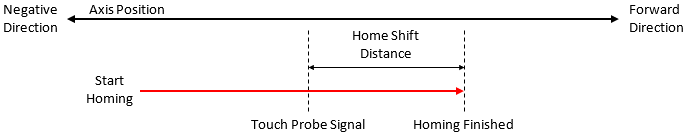

Position Diagram

The following position diagram shows an example of the motion of the axis during this homing procedure.

Profile

The following are the velocity and acceleration plots for the above example motion.
