HSOff

When the home type is HSOff, the axis will search for the falling edge of the home switch in the homing direction, and sets the axis feedback position on the cycle that the falling edge of the home switch was found as the home position.

If the limit switch is found before the falling edge of the home switch, the axis will reverse to find the falling edge of the home switch in the reverse direction, and then search for the falling edge of the home switch in the homing direction (see Limit Switches During Homing).

If the home switch is on at the beginning of homing, the axis will still search for the falling edge of the home switch in the homing direction (this behavior is different for gantry homing) (see Home Switch is Initially On).

State Diagram

The following state diagram shows the Home States of this homing procedure.

Position Diagram

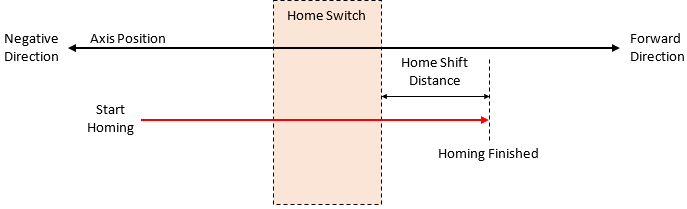

The following position diagram shows an example of the motion of the axis during this homing procedure.

Profile

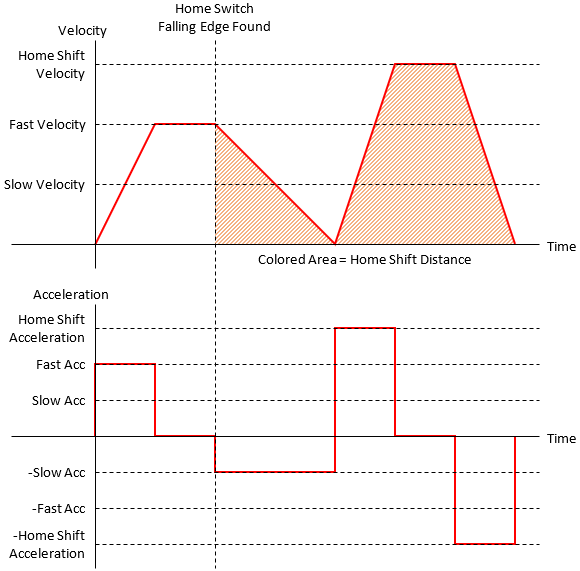

The following are the velocity and acceleration plots for the above example motion.

Position Diagram - Home Switch is Initially On

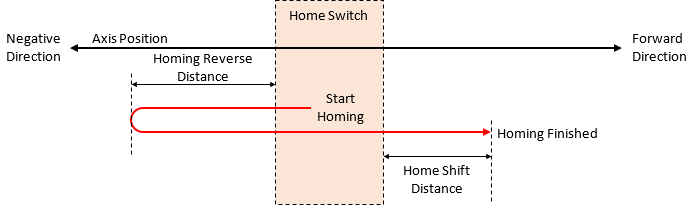

The following position diagram shows an example of the motion of the axis if the home switch is on at the beginning of homing.

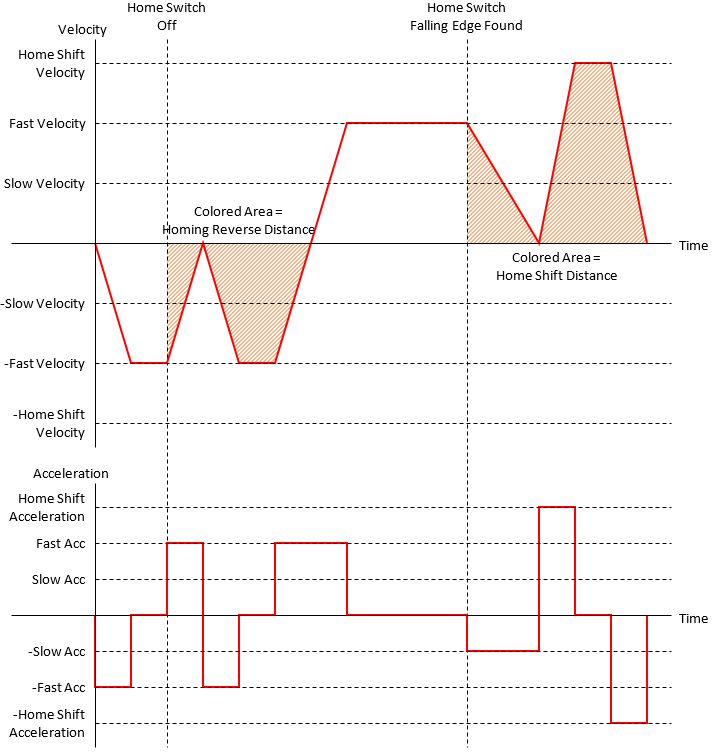

Profile - Home Switch is Initially On

The following are the velocity and acceleration plots for the above example motion.
